| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYLD-G |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $950~$1550/pcs |
| Packaging Details: | Export standard packing |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs/per month |
| Accuracy Class: | 1.0 | Nominal Diameter DN (mm): | DN15~DN200 |
|---|---|---|---|
| Atmosphericmedium Temperature: | -30℃～+65℃ | Power Supply: | 24VDC |
| Atmospheric Pressure: | 86KPa～106KPa | Ambient Humidity: | 5%～95% |
| Model: | NYLD-G | Measured Medium Temperature: | -20℃～+80℃ |
| High Light: | Interchangeable Vortex Flow Meter,Vortex Gas Flow Meter,Intelligent Gas Turbine Flowmeter |
||

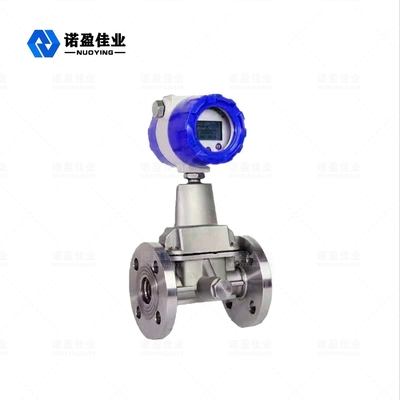

NYLD-G Intelligent Precession Vortex Flow Meter 24VDC Interchangeable
NYLD-G Intelligent Precession Vortex Flow Meter
Intelligent precession vortex flowmeter is a new type of gas flow meter developed by our company with domestic leading level. Virtual gateway multi-physical parameter alarm output, users can choose any one;The flowmeter integrates flow, temperature and pressure detection functions, and can automatically compensate temperature, pressure and compression factors.The head of the flowmeter can rotate 360 degrees, which is easy to install and use. It is an ideal instrument for gas measurement in petroleum, chemical, electric power, metallurgy and other industries.
NYLD-G Intelligent Precession Vortex Flow Meter Technical Parameters
| Nominal diameter DN (mm) | Type |
Flow range (m3/ h) |
Working pressure(MPa) |
Accuracy class
|
Repetitive |
| 15 | 1.0-10 |
1.6 2.5 4.0 6.3 10 16 |
1.0 1.5 |
It's less than 1/3 of the absolute value of the base error limit | |
| 20 | 1.5-15 | ||||
| 25 | 3.0-30 | ||||
| 32 | 6.0～60 | ||||
| 40 | 7.0～70 | ||||
| 50 | A | 12～150 | |||
| B | 2.5～75 | ||||
| 80 | A | 40～400 | |||
| B | 10～200 | ||||
| 100 | A | 80～900 | |||
| B | 30～600 | ||||
| 150 | A | 150～1500 | |||
| B | 40～900 | ||||
| 200 | 240～3600 | 1.6;2.5;4.0 |
