| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYLD-S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $190~$550/pcs |
| Packaging Details: | Export standard packing |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs/per month |
| Rated Pressure: | 1.0M Pa (special Pressure Can Be Customized) | Temperature Grade: | -20-80℃ |
|---|---|---|---|
| Installation Mode: | DN40-DN300 (pipe Flange Type) | Electrode Form: | Standard Fixed |
| Protection Grade: | IP68 | Flow Direction: | Forward And Reverse |
| Communication: | RS-485 (ModBus Protocol) | Output Signal: | Pulse (for Calibration) |
| High Light: | IP68 DN40 Electromagnetic Water Meter,DN300 Electromagnetic Flow Meter,Pipe Flange Electromagnetic Water Meter |
||

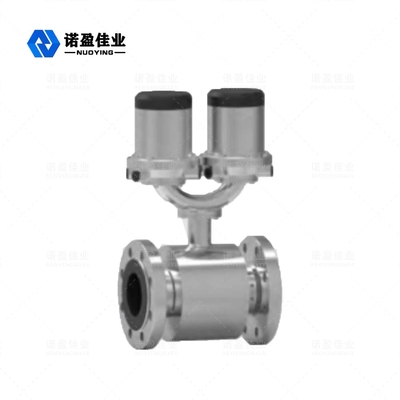

NYLD-S High Measurement Accuracy IP68 Electromagnetic Water Meter DN40 DN300
NYLD-S Electromagnetic Water Meter
The NYLD-S electromagnetic water meter is a battery-powered electromagnetic induction water meter which can be installed anywhere without sacrificing accuracy and performance. It does not require the main power supply.It is specifically designed for individual water applications such as water withdrawal, pipe network distribution, metering charges and irrigation. It has intelligent information and high measurement performance, which is easy to install and saves user investment.
NYLD-S Electromagnetic Water Meter Technical Parameters
| Applicable standard |
OIML R49 GB/T778 I50 40644 JJG162 GB 4208(housingl protection grade) (IP) (code) |
|
Rated pressure Temperature grade Installation mode Electrode form |
1.0M Pa (special pressure can be customized) -20-80℃ DN40-DN300 (pipe flange type) Standard fixed |
| Structure material |
Electrode: 316L Lining: natural rubber NR Flange: carbon steel, stainless steel Body: carbon steel, stainless steel |
|
Power supply |
3.6V 3.6V+24V dual power supply (9VDC-32VDC) 3.6V+220V dual power supply 85VAC- 265VAC) (separate type only) 3.6V + solar energy (separate type only) |
|
Ambient temperature Storage temperature Output signal |
(-25~55)℃ (-40~60)℃ Pulse (for calibration) |
| Alarm | Reverse flow, low battery of lithium battery, instantaneous flow, pressure, upper and lower limits, empty pipe, excitation alarm |
|
Protection grade Flow direction |
IP68 Forward and reverse |
| Communication | RS-485 (ModBus protocol) |
NYLD-S Electromagnetic Water Meter Design Features
◎ The meter is easy to install: the meter can be buried underground or installed in the well. The IP68 (NEMA6P) design is not affected by the installation position of the meter in the pipe, and no filter is required.
◎ Low pressure loss: the straight-through measuring pipe ensures minimum pressure loss, even at the highest flow rate, which reduces the pressure of the entire network system, and it helps prevent the pump from being over-pressure, causing the pipe to rupture and leak.
◎ Zero maintenance: use the design of no moving parts, and battery life can reach five years.
◎ Two-way measurement: use only one meter for two-way flow measurement.
◎ Intelligent type meter:use only one meter for leak measurement, data record function and error self-test.
