| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb |
| Model Number: | NYRD808 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/ pre month |
| Application: | Liquids,dust,solids | Item No.: | NYRD808 |
|---|---|---|---|
| Antenna Form: | Bar Type, Water Drop Type | Antenna Material: | PTFE、304、316 |
| Measuring Range: | 35m,40m,80m | Accuracy Of Measurement: | 0.05%~0.1%F.S |
| High Light: | Handheld Ultrasonic Water Level Sensor,Ultrasonic Water Radar Level Meter,40m Liquid Radar Level Transmitter |
||
Handheld Ultrasonic Water Level Sensor Radar Level Meter
Description
This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70 meters. Antenna is optimized further processing,
the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.

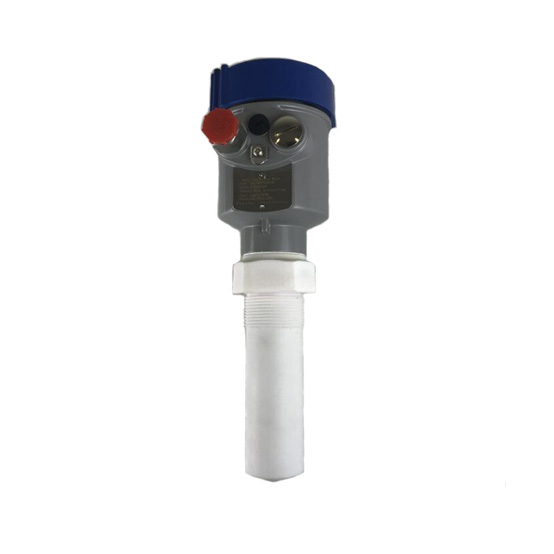

Detailed Images
Specification
| HHandheld Ultrasonic Water Level Sensor Radar Level Meter | |
| Application | All Kinds of Corrosive Liquid |
| Measuring Range | 10 Meters |
| Process Connection | Thread, Flange |
| Medium Temperature | -40℃ ~ +120℃ |
| Process Pressure | -0.1 ~ 0.3 Mpa |
| Accuracy | ±5mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Signal Output | 4~20mA/Hart (Two-wire/Four) RS485/Modbus |
| Explosion-proof Grade | Exia II C T6 Ga |
Principle
Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).
Datum measurement: Screw thread bottom or the sealing surface of the flange.

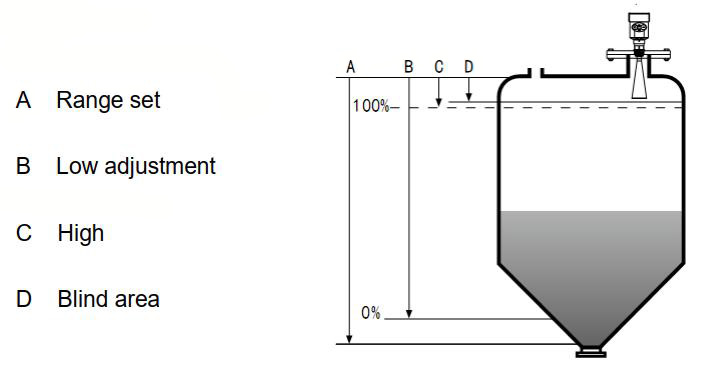

Note: Make sure the radar level meter the highest level cannot enter the measuring blind
area (Figure D shown below).
