| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate |
| Model Number: | NYSP-Z21 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $450 to $1700 |
| Packaging Details: | Export standard packing |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Applications: | Dielectric Constant Liquid | Probe Type: | Drum Hard Rod |
|---|---|---|---|
| Measuring Range: | 0~6m | Process Connection: | Screw Thread, Flange(optional), |
| Protection Grade: | Display Instrument IP67, IP67 | Operating Temperature: | -40～150℃ |
| Signal Output: | 4-20mA, 4-20mA/HART(Two Wire/FOUR Wire) | Power Supply: | （13-35）vDC |
| High Light: | Modbus RF Admittance Level Switch,Drum RF Admittance Level Switch,Modbus Drum Level Transmitter |
||

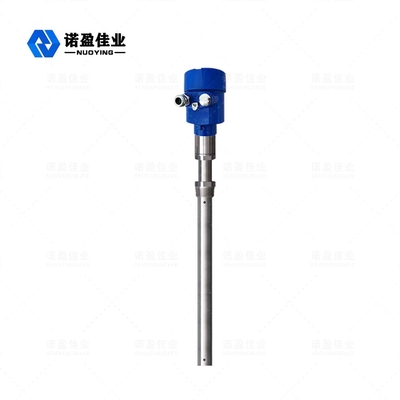

NYSP-Z21 Rf Admittance Level Meter
The NYSP-Z21 Rf admittance level meter is based on the principle of radio frequency admittance level measurement products continuously.The product has high stability, high sensitivity and wide applications, etc.Compared with the traditional capacitive material level meter, the use of modular design, can be concise and easily realize the instrument set, once set, can be normal use and free maintenance for life.Enables users to intuitive understanding of the running status of equipment, and deal with the problems in time, in the complex industrial occasions as well as safe and reliable.
Rf Admittance Level Meter Technical Parameter
| Applications | Dielectric constant liquid |
| Probe type | Drum hard rod |
| Measuring Range | 0~6m |
| Process temperature | -40～150℃ |
| Ambient temperature | -40 ℃ ~ + 70 ℃ |
| Storage temperature | -20 ℃ ~ + 65 ℃ |
| Process pressure | -0.1～8.0MPa |
| Power supply | (13-35)vDC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process connection | Thread/Flange(selective) |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6(selective) |
| Delay: | 0 ~ 30 s adjustable |
※ Note: Products can be customized according to the specific requirements of users!
Rf Admittance Level Meter Design Features
◎ The unique Driving - shields circuit design can improve the ability to resist hanging
◎ No dead zone measurement, can be applied to more than ten or even a few cm level measurement occasions
◎ The output of the stable and reliable, fly ash, blanking, water vapor, crystallization, wax
◎ No activities, no easy worn parts, often without cleaning and maintenance, debugging
Rf Admittance Level Meter Installation requirements
Considerations

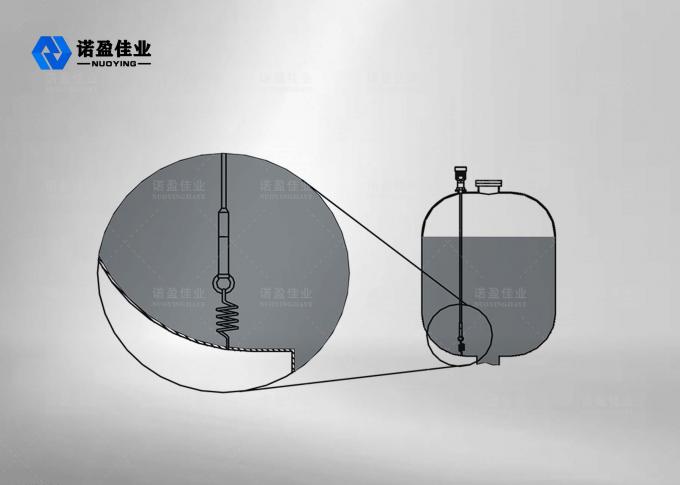

The shield end shall enter the tank.
The anchor must be pulled tight to prevent the probe from hitting the wall and stirring.
(NYSP 24 probe and ground anchor should be insulated)

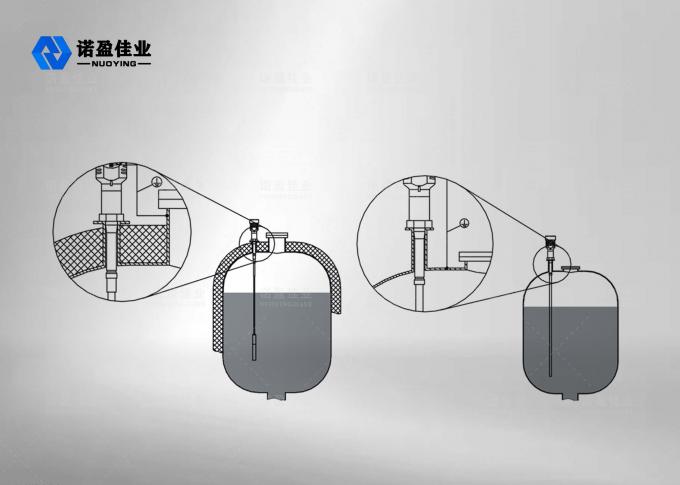

The whole installation

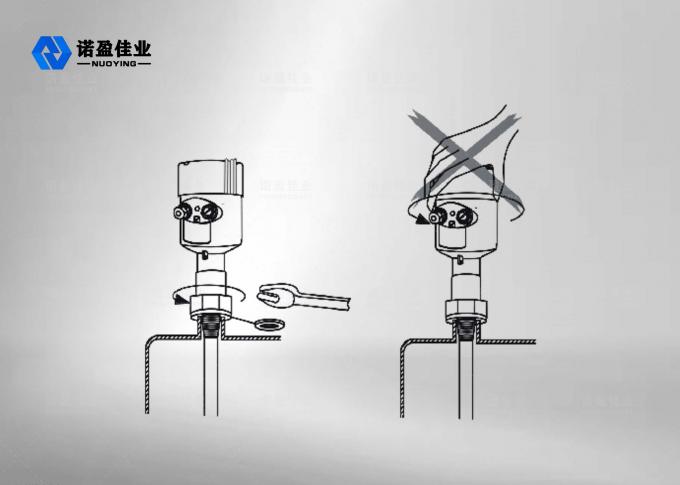

Note
- Do not damage the probe structure when installing the instrument on site.
- The installation of the instrument on site, and notice that when the thread is installed, do not wring the aluminum shell of the instrument, but use the special tool to operate it.
- If the flange is installed, you should hold the flange or the probe part connected with it. Do not use the hand-held pull gauge aluminum shell.
Top loading
Lateral loading

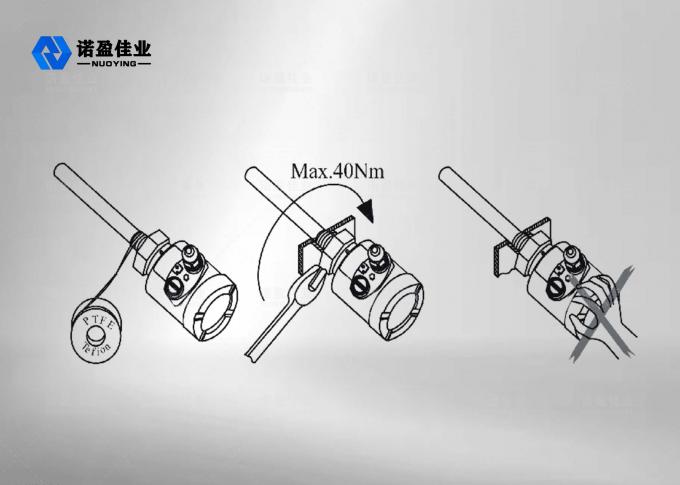

Note
- Standard tools for installation: adjustable spanner specification: 18Inch (maximum opening 55mm);
- Need to consume materials, raw materials: PTFE Tefion.
