| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYUHZ |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 300-600 |
| Packaging Details: | Carton, 90cm×30cm×30cm (reference) |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 800pcs per month |
| Typical Application: | Liquid | Product Model: | NYUHZ |
|---|---|---|---|
| Installation Method: | Side-Mounted, Top-Mounted | Measuring Range: | 0~6m(Single Set) |
| Measurement Accuracy: | -/+3mm, -/+5mm, -/+10mm(optional) | Process Temperature: | -50°C~+450°C |
| Process Pressure: | -0.1~16Mpa | Connection: | Flange |
| High Light: | Liquid Flap Magnetic Level Meter,NYUHZ Magnetic Flap Level Gauge,6m Flange Magnetic Gauge Meter |
||

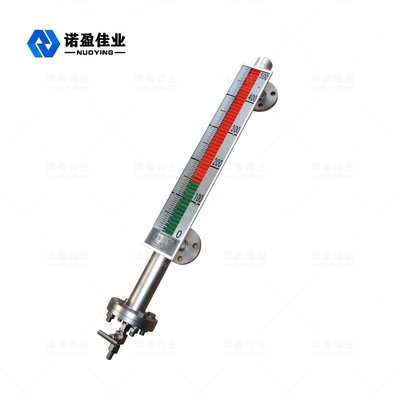

Magnetic Flap Liquid Level Meter Simple Structure Easy To Read Working Stably
Simple And Firm Structure Working Stably Magnetic Flap Liquid Level Meter Operating Principle
Magnetic Flap Liquid Level Meter can be applied in liquid level measurement of tower, tank, slot, spherical vessel, boiler and other containers. It’s designed to be high sealing performance and anti-leaking. It is suitable for the occasions of high temperature, high pressure and strong corrosion resistance.
Magnetic Flap Liquid Level Meter has two main parts, a cavity with a floating ball called measuring tube or main tube, and a indicating panel. The cavity is connected with medium tank through flanges or other suitable connection types. So the floating ball indicating medium level in the measuring tube will go up and down along with the level in the tank. The floating ball has a permanent magnet which will attract the corresponding magnetic colored flaps to turn over. Then the actual value of medium level will be shown clearly in the indicating panel, people can read easily .
Magnetic Flap Liquid Meter Product Feature
- Simple and firm structure, Working Stably
- Clear display, easy to read
- Measurement application for corrosion, explosion, poison, high temperature, stir and pollution liquid level condition
- Multiple installation and connection types optional
- Disigned pressure range from vacuum to 10 Mpa
- Disigned teperature range from -160°C ~ +450°C
- Customized upon special requirement
| Typical Application | Liquid |
| Product Model | NYUHZ |
| Installation Method | Side-Mounted, Top-Mounted |
| Measuring Range | 0~6m(Single Set) |
| Process Pressure | -0.1~16Mpa |
| Measuring Accuracy | -/+3mm, -/+5mm, -/+10mm(optional) |
| Process Temperature | -40°C~+450°C |
| Connection | Flange |
| Supply Power | 24VDC |
| Signal Output | 4-20 mA /HART/RS485/Modbus... |
| Protection Grade | IP65, IP67, IP68 (optional) |
| Explosion-proof Grade | Exia II CT6 Ga, Exd II CT6 Gb (details in certificate) |
