| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYYCUK-A |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $150~$350/pcs |
| Packaging Details: | Carton, 36cm x 18cm x 15cm |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Model: | NYYCUK-A | Fork Body Material: | 304 (optional) |
|---|---|---|---|
| Fork Length: | 44mm (can Be Customized) | Power Supply: | 24VDC |
| Process Pressure: | <2.0MPa | Process Connection: | Flange (optional) |
| Signal Output: | SPDT Relay Output | Protection Class: | IP67 |
| High Light: |
44mm Slurry Vibration Fork Level Switch,Tuning Fork Level Sensor Explosion Proof,24VDC Tuning Fork Level Switch |
||
44mm Slurry Vibrating NYYCUK-A Tuning Fork Level Switch Explosion-Proof

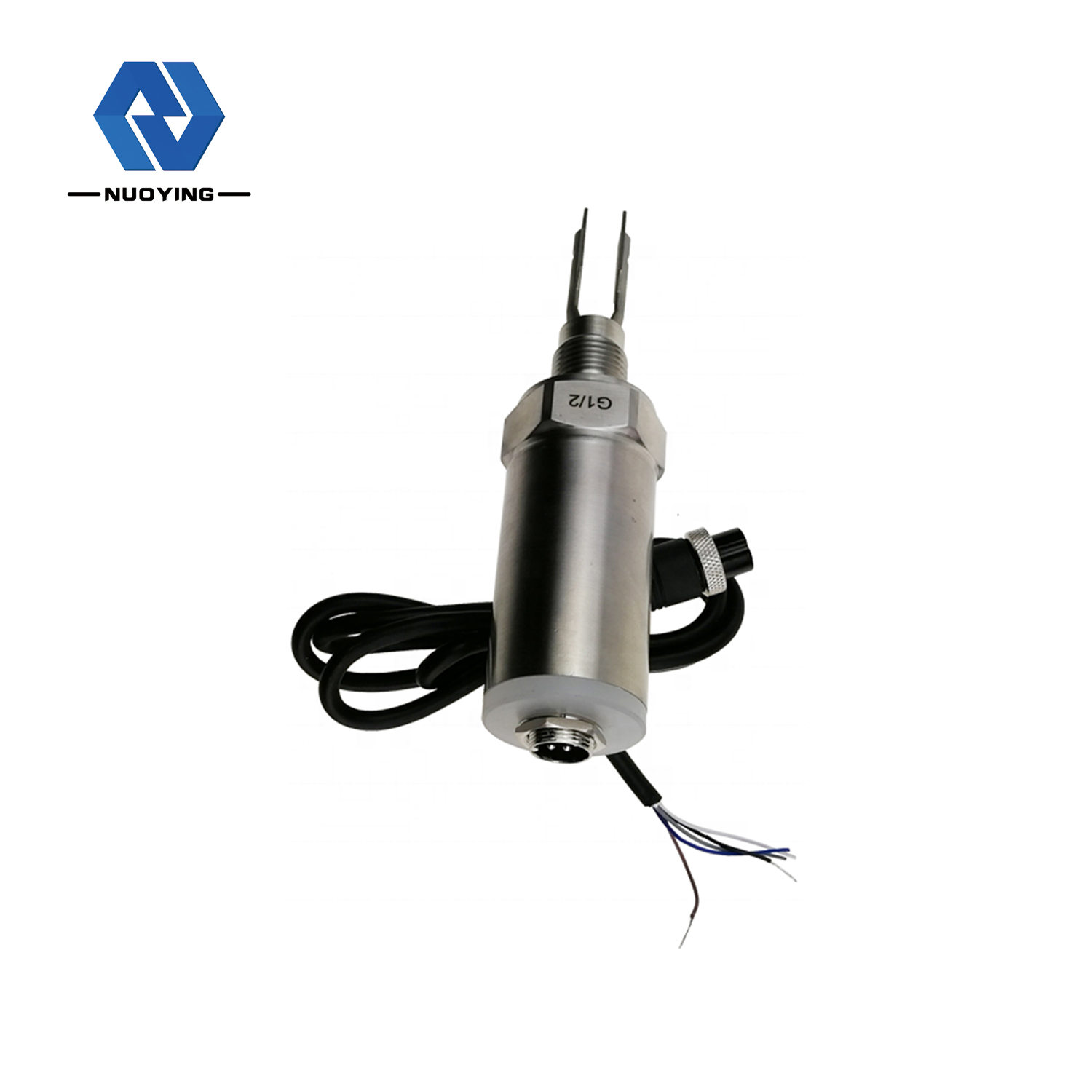

NYYCUK-A Tuning Fork Level Switch
NYYCUK tuning fork level switch is a new type of level switch. Suitable for measuring free-flowing, medium-density solid powders or granules. Also suitable for almost all liquid media, this series of tuning fork level switches can measure a variety of levels, with high/low fail-safe limit switches, overflow or dry run protection, pump control, display pipeline with/without flow, etc.It is suitable for almost all liquid media, but also for the measurement of free-flowing, medium-density solid powders or granules. Not affected by foam, eddy current and gas, it is suitable for fixed-point alarm or control of solid material level in various silos and liquid level in various containers. Various models are available for different applications.Since the tuning fork level switch basically has no moving parts, the mechanical wear is relatively low, so it does not need maintenance and adjustment, and is simple and convenient to use.Long service life, stable performance, safe and reliable.In addition, the level switch adopts foreign new technology and original imported chips, which has the advantages of long service life, stable performance, safety and reliability, and strong adaptability (different electrical parameters and density of the measured medium will not affect the measurement) , No adjustment (no on-site adjustment is required no matter what medium is measured) and maintenance-free, it is widely used in the process control of material level in metallurgy, building materials, chemical industry, light industry, grain and other industries.Strong adaptability - different electrical parameters and densities of the tested materials will not affect the measurement. Harsh conditions such as scaling, agitation, turbulence, air bubbles, vibration, medium viscosity, high temperature, and high pressure have no effect on detection.
NYYCUK-A Tuning Fork Level Switch Technical Parameter
| Typical Applications | most fluids, coating fluids, aerated fluids, and slurries |
| Fork body material | 304 (optional) |
| Fork length | 44mm (can be customized) |
| Power supply | 24VDC |
| Working temperature | Fork body -40℃～+180℃ Instrument -40℃～+80℃ |
| Process pressure | <2.0MPa |
| Process connection | Flange (optional) |
| Signal output | SPDT relay output |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6 Ga |
Note: Products can be customized according to the specific requirement of users!
