| Place of Origin: | Xi'an Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYYCUK-B |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $108.366/pcs |
| Packaging Details: | Carton,30cm*20cm*20cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Product Models: | NYYCUK-B | Process Pressureterface: | -0.1～2.0MPa |
|---|---|---|---|
| Fork Length: | 44mm,100mm(customizable) | Power Supply: | 24VDC, 220VAC |
| Process Connection: | Thread, Clamp,flange (optional) | Signal Output: | DPDT Relay Output |
| Typical Application: | High And Low Alarm For Liquid, Dust And Other Media | Process Temperature: | -40~+130℃ |

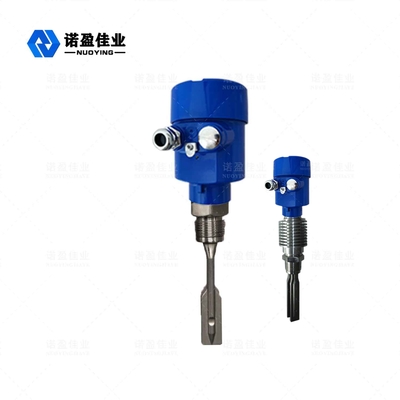

NYYCUK-B No Maintenance And Adjustment Tuning Fork Level Switch
NYYCUK-BTuning Fork Level Switch Working Principle
The NYYCUK tuning fork level switch is a universal level limiting switch. The tuning fork is excited by a piezoelectric crystal which generates vibrations. When the tuning fork is immersed in a liquid or solid, the frequency of the vibration changes. This change in frequency is detected as a switching value by the electronic circuitry. The tuning fork level limit switch is unaffected by dielectric constant, turbulence, agitation, air bubbles, vibration, etc. and has no moving parts. It therefore requires no maintenance or adjustment. It is ideal for level switches in complex operating conditions. The latest smart chip can be used as an oil-water interface switch.
The tuning fork level switch is widely used for limit monitoring of liquid media such as tap water, mineral water, petrol, diesel, pulp, glue, waste water, dyes, acid and alkaline solutions, beer and beverages, as well as solid powders and small solid particles with good fluidity.
| Typical Application | High and low alarm for liquid, dust and other media |
| Product Model | NYYCUK-B |
| Fork Length | 44mm,100mm(customizable) |
| Power Supply | 24VDC, 220VAC |
| Signal Output | DPDT relay output |
| Process Temperature | -40~+130℃ |
| Process Pressure | -0.1～2.0MPa |
| Process Connection | thread, clamp, flange (optional) |
| Protection Grade | IP 67 |
| Explosion Proof Grade | ExiaⅡCT6 Ga, ExibⅡCT6 Gb (see certificate for details) |
◎ Unaffected by foam, eddy currents and gases, they are suitable for solid material levels in various silos and for fixed point alarm or control of liquid levels in various vessels. Various models are available for different occasions.
Long service life, stable performance, safe and reliable
High adaptability - different electrical parameters and density of the material to be measured will not affect the measurement effect Harsh conditions such as scaling, stirring, turbulence, bubbles, vibration, medium viscosity, high temperature and pressure also have no effect on the detection.
Â- No need for adjustment: It is not affected by the dielectric constant and density of the medium being measured, so no on-site adjustment is required, regardless of the type of liquid being measured.
Maintenance free: The testing process of the tuning fork switch is carried out by electronic circuitry and there are no moving parts. Once installed and put into service, no on-site adjustment is required.
