| Place of Origin: | Xi'an Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYYCUK-C |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $125.037/pcs |
| Packaging Details: | Carton,30cm*20cm*20cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Product Models: | NYYCUK-C | Process Temperature: | -40~+220℃ |
|---|---|---|---|
| Fork Length: | 44mm,100mm(customizable) | Power Supply: | 24VDC, 220VAC |
| Process Connection: | Thread, Clamp,flange (optional) | Process Pressureterface: | -0.1～2.0MPa |
| Signal Output: | DPDT Relay Output | Typical Application: | High And Low Alarm For Liquid, Dust And Other Media |

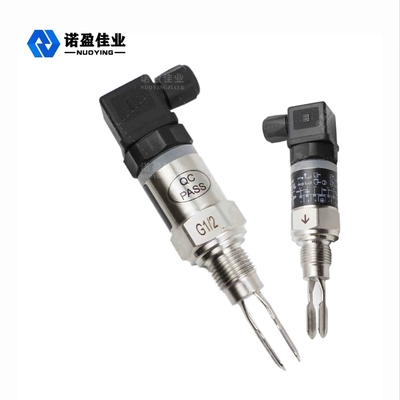

NYYCUK-C Safe And Reliable Without Adjustment Tuning Fork Level Switch
NYYCUK-C Tuning Fork Level Switch Working Principle
NYYCUK tuning fork liquid level switch is a universal liquid level limit switch. The tuning fork vibrates under the stimulation of piezoelectric crystals. When the fork is immersed in liquid or solid, the vibration frequency will change. The frequency change is detected by an electronic circuit with switching value. The tuning fork liquid level limit switch is not affected by dielectric constant, turbulence, agitation, bubble, vibration and other factors, and has no moving parts, so it does not need maintenance and adjustment. It is an ideal choice for liquid level switch under complex working conditions. The latest smart chip can be used as oil-water interface switch.
Tuning fork liquid level switch is widely used for monitoring the limit value of tap water, mineral water, gasoline, diesel, paper pulp, glue, waste water, dye, acid and alkali solution, beer, beverage and other liquid media, as well as for monitoring the limit value of solid powder, solid particles and other good flowing media.
| Typical Application | High and low alarm for liquid, dust and other media |
| Product Model | NYYCUK-C |
| Fork Length | 44mm,100mm(customizable) |
| Power Supply | 24VDC, 220VAC |
| Signal Output | DPDT relay output |
| Process Temperature | -40~+220℃ |
| Process Pressure | -0.1～2.0MPa |
| Process Connection | thread, clamp, flange (optional) |
| Protection Grade | IP 67 |
| Explosion Proof Grade | ExiaⅡCT6 Ga, ExibⅡCT6 Gb (see certificate for details) |
It is not affected by foam, eddy current and gas. It is suitable for fixed point alarm or control of solid material level in various silos and liquid level in various containers. Various models are available for different occasions.
Long service life, stable performance, safe and reliable
Strong adaptability - the different electrical parameters and density of the measured material will not affect the measurement effect. Such as scaling, agitation, turbulence, bubbles, vibration, medium viscosity, high temperature and high pressure and other harsh conditions will not affect the detection.
No adjustment required: unaffected by the dielectric constant and density of the medium under test, no field adjustment is required, regardless of the type of liquid under test.
Maintenance-free: The tuning fork switch test process is conducted by electronic circuit, no moving parts. After installation and use, no field adjustment is required.
