Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate |
| Model Number: | NYZK |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $400 to $1800 |
| Packaging Details: | 60cm×30cm×30cm |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs/ pre month |
| Display Mode: | 128x96 Lattice Liquid Crystal Display | Display Accuracy: | ±0.1%F .S |
|---|---|---|---|
| Power Supply Voltage: | 24VDC、220VAC(optional) | Ambient Temperature: | -30〜+80°C |
| Relative Humidity: | < 95%RH | Process Connection: | Bracket ，flange (optional) |
| Level Of Protection: | IP 67 | Explosion-proof Grade: | Exd IICT6,Exia IICT6(optional) |
| High Light: | NYZK radar tank level indicator,radar tank level indicator 220VAC,220VAC radar tank gauge |
||

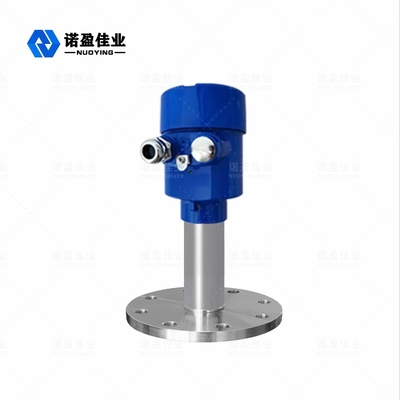

NYZK Tank Side Indicator Level Transmitter
NYZK Tank Side Indicator Level Transmitter Measuring principle
NYZK can display instrument (hereinafter referred to as "display instrumenf) is mainly used to output the auxiliary display of 4~20mA without digital display or with digital display but not easy to observe.This display instrument should be installed in the position by the tank easy to observe, convenient for nearby observation.
NYGP Tank Side Indicator Level Transmitter Technical Parameter
| Indication range | 0〜99999mm,0.000〜99.999m,-50.0〜+300.0°C ,0〜99999KPa,0.00 〜100.00% |
| Display mode | 128x96 Lattice liquid crystal display |
| Accuracy | ±0.1%F .S |
| Power Supply Voltage | 24VDC,220VAC(optional) |
| Ambient temperature | -30〜+80°C |
| Relative humidity | < 95%RH |
| Process connection | Bracket ,flange (optional) |
| Level of protection | IP 67 |
| Explosion-proof grade | Exd IICT6,Exia IICT6(optional) |
※ Note: Products can be customized according to the specific requirements of users!
NYGP Tank Side Indicator Level Transmitter Design features
- Directly into the 4〜20mA loop, no additional power supply is required;
- Using dot matrix liquid crystal display, can display different parameter names and units, the application is flexible;
- 4 thin film keys, convenient to set parameters nearby;
- Suitable for use with 4〜20mA output instruments;
- With Exd II CT6/Exia II CT6 explosion-proof performance, can be used in zone 0 (to be safe gatepower supply), area 1, area 2 and other flammable and explosive areas.
