Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb |
| Model Number: | NP-93420-IB |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/ pre month |
| Application: | Liquid/Gas/Steam | Product No.: | NP-93420-IB/-IF/-IX/-IC/-IT/-IQ/-II/-III |
|---|---|---|---|
| Gauge Pressure: | 0~5KPa~3.5MPa/0~0.1KPa~2MPa | Sealing Pressure: | 0~7KPa~100MPa |
| Absolute Pressure: | 0~20KPa~35MPa | Diaphragm Material: | 316L(Optional) |
| Accuracy: | 0.1/ 0.2 Grade | Power Supply: | 24VDC |
| Output: | 4... 20mA/HART/RS485/Modbus... | Display: | LCD(Optional) |
OEM high pressure hydraulic strain gauge sensor price
Description Air Gas micro vacuum negative liquid pressure sensor transducer
Industrial Air Gas micro vacuum negative pressure sensor transducer uses diffused silicon imported chips, circuit signal isolation amplifier, cutoff frequency interference design (anti-interference ability, lightning) overvoltage protection, current limiting protection, impact and corrosion. Hydraulic pressure sensor housing full seal welded 316 stainless steel, compact, compact, good moisture resistance and excellent media compatibility.

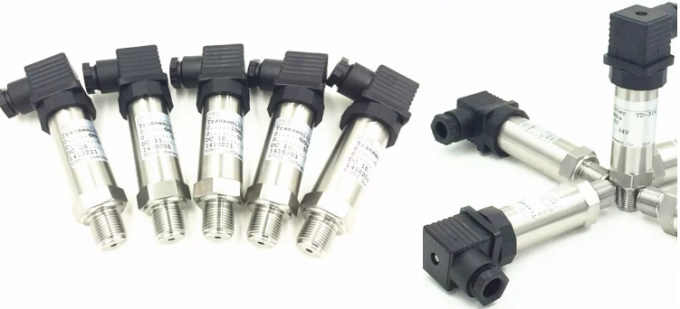

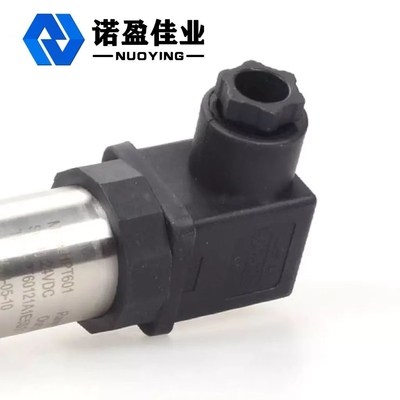

Images Industrial Air Gas micro vacuum negative liquid pressure sensor transducer
Specification Air Gas micro vacuum negative liquid pressure sensor transducer
| Measure Range | -100kPa~0.....10kPa...100MPa |
| Pressure Type | gauge (G), absolute (A), sealed gauge (S) |
| Overpressure | 150%FS |
| Accuracy | 0.2%FS, 0.5%FS |
| Output signal | 4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire) |
| Supply | 12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc |
| Temp.coefficient of zero | ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.) |
| Temp.coefficient of span | ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.) |
| Compensated temperature range | -10~+70°C |
| Operating temperature range | -40~+125°C |
| Storage temperature range | -40~+125°C |
| Insulating resistance | ≥100MΩ@100Vdc |
| Load resistance | R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output) |
| Electrical interface | DIN43650, option 1.5m cable connetion |
| Pressure interface | G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request) |
| Material of pressure membrane | 316L stainless steel |
