| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYZX |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 300-600 |
| Packaging Details: | Carton, 90cm×30cm×30cm (reference) |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 600pcs per month |
| Typical Application: | Powder, Small Particle Level | Product Model: | NXZX Series |
|---|---|---|---|
| Installation Method: | Thread, Flange (optional) | Fork Length: | 44mm 100mm |
| Antenna Material: | 304 (optional) | Process Temperature: | - 40~+80 ℃ (>+80 ℃ Can Be Customized) |
| Process Pressure: | Constant Pressure | Signal Output: | 250V5A (SPDT Single Pole Double Throw) |
| High Light: | Industrial Rotary Paddle Level Switch,Rotary Paddle Level Switch Anti Dust,Oil Seal Paddle Level Sensor |
||

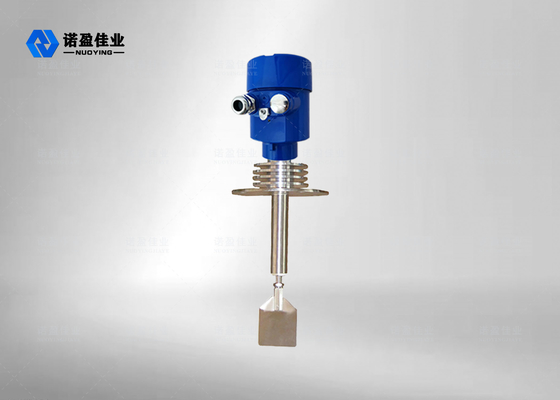

Unique Oil Seal Design Rotation Material Level Switch Anti Dust Industrial Applicatons
Simple Structure Convenient Installation Rotation Material Level Switch Convenient Installation Operating Principle
The NYZX series rotation material level switch adopts permanent magnet motor to drive the blade to rotate. When the measured material rises to the rotating blade position, the blade is blocked, and the resistance is transmitted to the detection device. The device gives a switch signal, and stops the rotating blade. When the material level drops, the blade resistance disappears, and it will rotate again. The spring tension can be adjusted according to the specific pulling force of different materials. When the force is strong, the spring tension is adjusted to stronger, otherwise it is adjusted to weaker.
NYZX series rotatioan material level switch is a field control device for the detection of the level of solid materials (powder, particles), widely used in dry feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.
Rotation Material Level Switch Design Feature
◎ Unique oil seal design, it can prevent dust from penetrating along the shaft
◎ imported motor of the rotary resistance switch, It has reliable performance and the double sealed bearing can ensure continuous operation for a long time
◎ simple structure and convenient installation
◎ Stable and reliable, and the torque can be adjusted
◎ Various probe types, it can be applied to different occasions with large output contact capacity
Rotation Material Level Switchp Product Parameter
|
Typical Application |
powder, small particle level |
|
Product Model |
NXZX series |
|
Shell Material |
Cast Aluminum |
|
Antenna Material |
304 (optional) |
|
Fork Length |
44mm 100mm |
|
Process Temperature |
- 40~+80 ℃ (>+80 ℃ can be customized) |
|
Process Pressure |
constant pressure |
|
Process Connection |
thread, flange (optional) |
|
Electrical Interface |
3/4”NPT |
|
Supply Power |
24VDC, 220VAC(optional) |
|
Signal Output |
250V5A (SPDT single pole double throw) |
|
Medium Density |
≥ 0.4g/cm3 |
|
Insulation Impedance |
≥ 100M Ω (500VDC) |
|
Dielectric Strength |
1500V1min |
|
Protection Grade |
IP67 |
|
Explosion-proof Grade |
Exia II CT6(details in certificate) |
Rotation Material Level Switchp Product Application

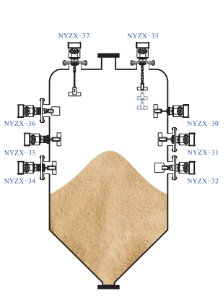

NYZX series rotation material level switch can be installed in silos, cabinets, cellars and wells
