Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYCSUL-501 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $150~$1380/pcs |
| Packaging Details: | Carton, 30cm x 25cm x 20cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs/per month |
| Model: | NYCSUL-501 | Process Temperature: | -20℃～+70℃ |
|---|---|---|---|
| Process Pressure: | Normal Pressure | Process Connection: | Thread, Bracket Mounting (optional) |
| Measuring Range: | 0～20m | Signal Output: | RS485... |
| Power Supply: | 220VAC | Setting Output: | Upper Limit Setting, Lower Limit Setting |
| High Light: | Polypropylene Ultrasonic Level Transmitter,Liquid Ultrasonic Level Gauge 220VAC,RS485 Ultrasonic Liquid Level Sensor |
||

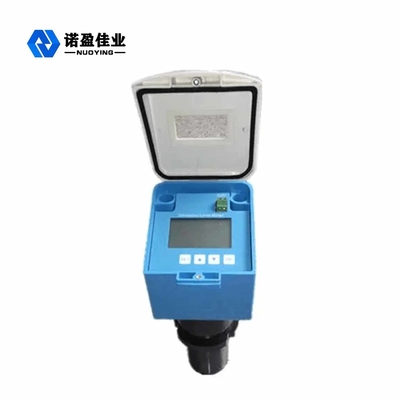

Polypropylene NYCSUL-501 Ultrasonic Level Transmitter Liquid Level Measurement
NYCSUL-501 Ultrasonic Level Transmitter
The ultrasonic level meter is installed on the top of the container.There are strong voltage, strong current, strong electromagnetic interference, try to avoid high voltage, high current and strong electromagnetic interference.Under the control of the electronic unit,the probe emits a beam of ultrasonic pulses to the object to be measured, the sound wave is reflected by the surface of the object, and part of the reflected echo is received by the probe and converted into an electrical signal, which is retransmitted according to the ultrasonic wave.Volatile liquids and areas with a lot of water vapor.The time difference to re-reception and the known speed of sound are used to determine the change of the material level. The microwave signal is processed by the electronic device and finally converted into an electrical signal related to the material level.The above field environment should be carefully selected, the numerical accuracy of measurement will decline, data may be unstable, generally not recommended to use ultrasonic level meter measurement.
NYCSUL-501 Ultrasonic Level Transmitter Parameters
| Typical application | Liquid level measurement |
| Frequency Range | 40KHz,100KHz |
| Probe type | Integrated |
| Probe Material | PVC/304(optional) |
| Measuring range | 0～20m |
| Measurement accuracy | ＜0.25%(Range＜20m) |
| Measuring angle | 10° |
| Power supply | 220VAC |
| Process temperature | -20℃～+70℃ |
| Process pressure | Normal pressure |
| Process connection | Thread, Bracket mounting (optional) |
| Signal output | RS485... |
| Display mode | distance (empty height) |
| Setting output | Upper limit setting, lower limit setting |
| Display | LCD |
| Shell material | Polypropylene |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6 Ga |
Note: Products can be customized according to the specific requirement of users!
