| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYWBUK |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $400~$500/pc |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/month |
| Typical Application: | Liquid, Dust, Solid And Other Occasions Where Holes Cannot Be Opened Due To Special Requirements | Product Models: | NYWBUK |
|---|---|---|---|
| Measuring Range: | 120m | Power Supply: | 24VDC，220VAC |
| Ambient Temperature: | -40~+80℃ | Process Temperature: | -40~1200℃ |
| Process Pressure: | -0.1~2.5Mpa | Process Connection: | Screw Thread |
| High Light: | Intelligent Adaptive Microwave Level Switch 120m,2.5MPa Microwave Level Switch,Tuning Fork Microwave Level Sensor |
||
Design Of Intelligent Adaptive Power Supply Microwave Level Switch
Working Principle of Microwave Level Switch

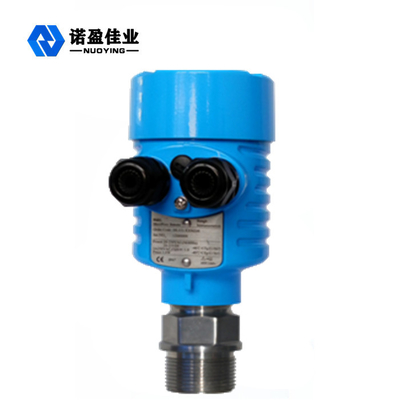

NYWBUK series microwave level switch is a solid level switch designed by microwave paired transmission and reception based on the principle of microwave extremely narrow pulse detection. The microwave level switch is a matched set of instruments, and one end is the sending end, which is responsible for sending the microwave signal; The other end is the receiving end, which is responsible for the collection and output of microwave signals. The instruments are installed in pairs at the positions to be monitored. When there is no material blockage at the monitoring position, the receiving end outputs a "no material" signal; When the monitoring position is blocked, the receiving end outputs a "blocked" signal. The status of output signal can be set as high alarm and low alarm on site.
Design feature of Microwave Level Switch
◎ high stability, strong anti-interference ability, intelligent adaptive power supply design
◎ the modular design concept is adopted, and the function indicator is equipped, which can easily and concisely realize the setting and maintenance of the instrument on the site
◎ simple structure and convenient installation
Technical parameters of Microwave Level Switch
| Typical application | Liquid, dust, solid and other occasions where holes cannot be opened due to special requirements |
|
product model |
NYWBUK |
| measuring range | 120m |
| Power Supply | 24VDC,220VAC |
| ambient temperature | -40~+80℃ |
| Process Temperature | -40~1200℃ |
| Process pressure | -0.1~2.5Mpa |
| Process Connection | screw thread(selectable) |
| levels of protection | IP67 |
| Explosion-proof grade | Exia II CT6 Ga(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
