| Place of Origin: | Xi'an,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate |
| Model Number: | NYUHZ-C |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $225.0~$285.0 |
| Packaging Details: | Wooden box |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/pre month |
| Range: | 300~6000mm | Power Supply: | 24VDC |
|---|---|---|---|
| Work Pressure: | ≤ 10MPa | Material: | PP |
| Output Signal: | 4-20mA | Temperature: | -20~450℃ |
| Medium Density: | ≥0.45g/cm3 | ||
| High Light: | PP Magnetic Float Level Transmitter,High Temperature Magnetic Float Level Transmitter,PP magnetic float level gauge |
||

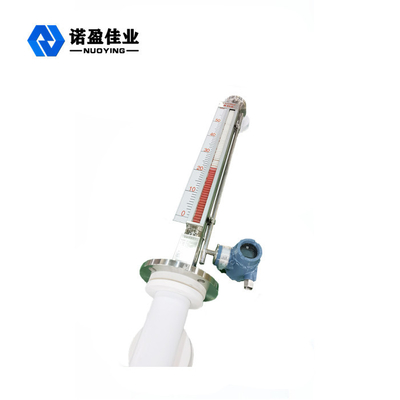

Magnetic Flapper Float Level Meter High Temperature High Pressure Model Level Meter
Magnetic Flapper Float Level Meter High Temperature High Pressure Model Level Meter Description:
Magnetic Level Gauge provides clear, high clarity indication of liquid level. Magnetic Level Gauges are principally designed as an alternative to glass level gauges.It offers Magnetic Level Gauges in top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic Level Gauge is consists of three major components: Float Chamber, Float and Indicator System.
Magnetic Flapper Float Level Meter High Temperature High Pressure Model Level Meter Parameters:
| Float Cage Material | SS304, SS316, PTFE, PP, PVC, PVDF |
| Max. Centre to Centre Distance | 6000 mm, greater lengths on request |

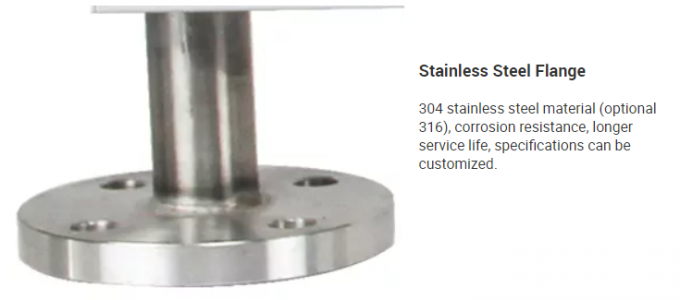

| Connecting Flanges | According to DIN or ANSI B16.5 |
| Rated Pressure | <10.0 Mpa for SS & 0.3 Mpa for PP, PVC & PVDF |
| Higher pressure rating can also be provided | |
| Temperature of Liquid | 450℃ (Max.) for SS, 80℃ (Max.) for PVDF |
| 60℃ (Max.) for PVC, 50℃ (Max.) for PP | |
| Specific Gravity | Min. 0.40g/cm³ |

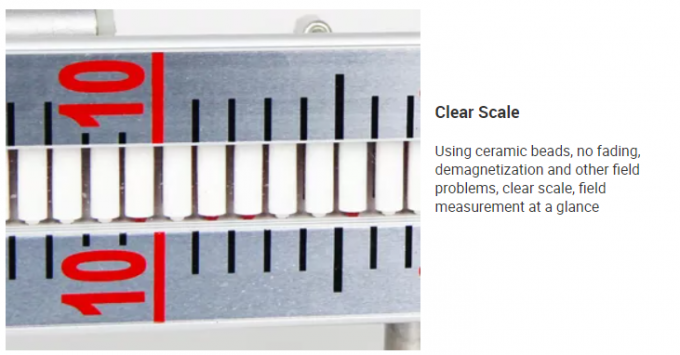

| Scale | Graduated in cm, Aluminium or SS304 |
| Measuring Accuracy | +/- 5 mm |
| Explosion-proof mark | Exd II BT6 |
| Protection Grade | IP65/IP67 |
Magnetic Flapper Float Level Meter High Temperature High Pressure Model Level Meter Features:
- Highly visible level indication with no process fluid in contact with the glass.
- All construction by code certified welders.
- Float designed and weighted for maximum accuracy with 75 grams minimum upward buoyant force.
- Transmitter and switch options which can be installed, adjusted and maintained with no process interruption.
- Safe for corrosive, flammable, toxic, high-temperature and high-pressure applications.
- Rugged design - low or no maintenance.
- IP67 approved local indication.
