| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYCSUL-501 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $150~$3000/pcs |
| Packaging Details: | Carton, 30cm x 25cm x 20cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs/per month |
| Model: | NYCSUL-501 | Frequency Range: | 100KHz |
|---|---|---|---|
| Probe Type: | Integrated | Measuring Range: | 0～20m |
| Measurement Accuracy: | ＜0.25% | Measuring Angle: | 10° |
| Power Supply: | 24VDC,220VAC (optional) | Process Temperature: | -20℃～+70℃ |
| High Light: | IP67 Water Tank Level Meter,PTFE Ultrasonic Level Transducer,Intelligent Ultrasonic Water Tank Level Meter |
||
PTFE 0～20m NYCSUL501 Ultrasonic Level Transmitter IP67 Water Tank Level Meter

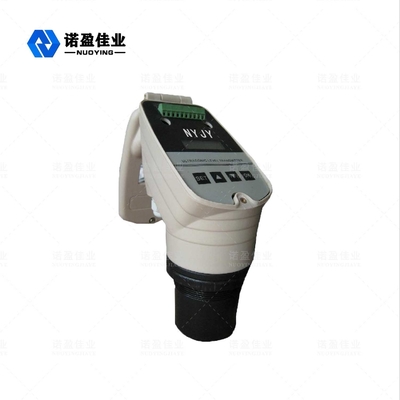

NYCSUL-501 Ultrasonic Level Transmitter
NYCSUL two-wire ultrasonic level meter is an intelligent non-contact liquid level measuring instrument. The ultrasonic level meter is installed at the top of the container. Under the control of the electronic unit, the probe transmits a beam of ultrasonic pulse to the object under the control of the electronic unit. The product has automatic power adjustment, gain control, temperature compensation, the use of advanced detection and calculation technology, interference signal suppression function, thus fundamentally improve the measuring accuracy of the instrument, to ensure the authenticity of the measurement results. The acoustic wave is reflected by the surface of the object. Some of the reflected echoes are received by the probe and converted into electrical signals. Products can be widely used fbr liquid level measurement of various liquids, but also for distance measurement.
NYCSUL-501 Ultrasonic Level Transmitter Technical Parameter
| Typical application |
Liquid level measurement |
| Frequency Range |
100KHz |
| Probe type |
Integrated |
| Probe Material |
PP/PVC/PTFE(optional) |
| Measuring range |
0～20m |
| Measurement accuracy |
＜0.25% |
| Measuring angle |
10° |
| Power supply |
24VDC,220VAC (optional) |
| Process temperature |
-20℃～+70℃ |
| Process pressure |
Normal pressure |
| Process connection |
Flange, Bracket mounting (optional) |
| Signal output |
4...20mA/HART |
| Display mode |
Liquid level |
| Setting output |
Upper/lower limit setting |
| Display |
LCD |
| Shell material |
Polypropylene/Aluminum |
| Protection class |
IP67 |
| Explosion-proofgrade |
ExiaⅡCT6 Ga |
※ Note: Products can be customized according to the specific requirements of users!
