Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYDR-3051 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Please Contact Me |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |
| Protection Class: | IP 65, IP 67, IP 68 | Electrical Interface: | M20×1. 5, ½ "NPT |
|---|---|---|---|
| Circuit Temperature Resistance: | - 40 ~ + 80 ℃ | Process Pressure: | - 0.1 ~ 1.6MPa |
| Product Model: | NYDR-3051 | Measuring Range: | 6m，20m |
| Antenna Form: | Line Type, Rod Type | Antenna Material: | PTFE, 304, 316 |
| High Light: | Radio Frequency Capacitance Level Meter,Rod Type Capacitance Level Meter,Rod RF Admittance Level Transmitter |
||

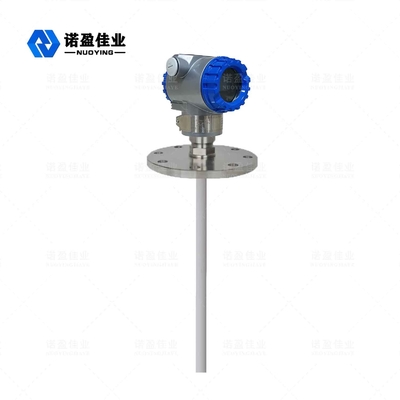

Rod Type Radio Frequency Capacitance Level Meter No Moving Parts
Radio Frequency Capacitance Level Meter Design Feature
◎The modular converter and sensor are integrated, no moving parts, high reliability and strong anti-interference ability;
◎Wider applicability, there are various probe forms, various process connection forms, various production materials, and can be customized design;
◎Installation, debugging, and maintenance are extremely convenient.
Radio Frequency Capacitance Level Meter Technical Parameter
| Typical application | Liquid, corrosive liquid, etc. |
| Product model | NYDR-3051 |
| Antenna form | Line type, rod type |
| Antenna material | PTFE, 304, 316 |
| Measuring range | 6m,20m |
| Power supply | 24VDC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature | - 40 ~ + 130 ℃, - 184 ~ + 260 ℃ |
