Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | Explosion-proof certificate |
| Model Number: | NYCZ |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $240 to $1900 |
| Packaging Details: | Export standard packing |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 300 pcs/ pre month |
| Measuring Range: | 0~25m | Power Supply: | 24VDC，220VAC |
|---|---|---|---|
| Material: | 304，316L(optional) | Accuracy: | Analog: 0.3% RS485: 0.1% |
| Protection Grade: | Display Instrument IP67, IP67 | Operating Temperature: | -40~130℃ |
| Signal Output: | Analog: 4-20mA Digital: RS485 | Bottom Non Detection Zone: | 50mm (customizable) |
| High Light: | High Accurate Magnetostrictive Level Gauge,Magnetostrictive Level Gauge 220VAC,220VAC Magnetostrictive Level Transmitter |
||

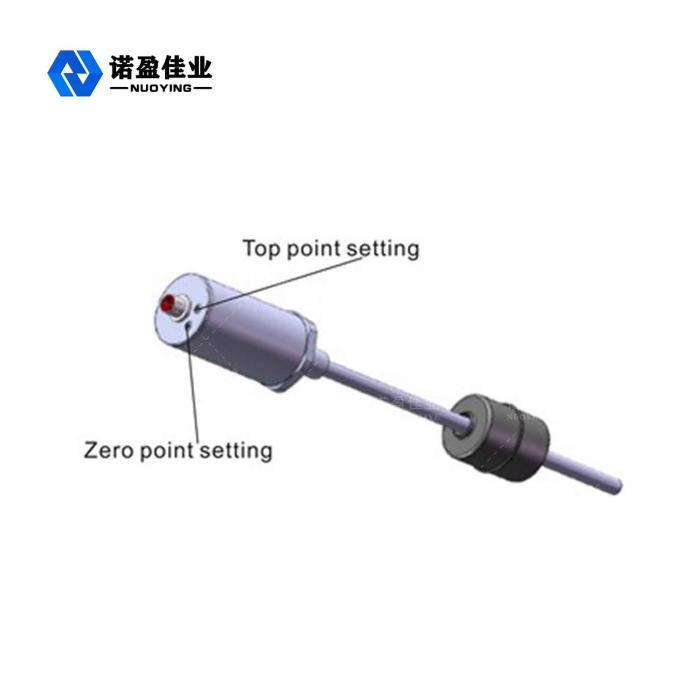

Magnetostrictive Liquid Level Gauge
- None contact continuously measurement, wear-proof permanently.
- No drift and do not need calibration.
- Absolute position measurement, resolution could reach to 0.15mm
- Could detect multi liquids, interfaces or liquid levels at same time
- Value range of measurement could be set by users.
Magnetostrictive Liquid Level Meter Technical Parameter
| Applications | liquid level |
| Measurement range |
Probe: 0-50~6000mm Cable: 25m |
| Accuracy | ±0.5mm |
| Power supply | 24VDC ±10% |
| Signal output | 4~20mA / Hart / RS485 |
| Working current | 4~20mA; 20.4mA |
| Load characteristics | when current output, maximum load resistance 600 Q voltage output, maximum load Resistance 2mA |
| Process temperature | -40〜130 °C,-40〜250 °C |
| Ambient temperature | -40〜80°C |
| Temperature effect | ±0.5 °C |
| Process pressure | - 0.1 ~ 4.0MPa |
| Resolution | ±lmm |
| Response time | 0.2 ms |
| Rod material | 304/316L (optional) |
| Process connection | Thread, flange, Support mounting (optional) |
| Site display | LCD (optional) |
| Housing material | stainless steel / aluminum (optional) |
| Protection grade | IP67 |
| Explosion proof grade | Exia IICT6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
