| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYCSUL-502 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $450~$1700/pc |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/month |
| Typical Application: | Liquid | Product Models: | NYCSUL-502 |
|---|---|---|---|
| Probe Type: | Integrated, Split, Explosion-proof, Anti-corrosion, Anti-corrosion And Explosion-proof | Measurement Precision: | <0.25%( Range <20m), <0.5%( Range >20m) |
| Antenna Material: | PP、PVC、PTFE、304 | Process Temperature: | -20~+70℃ |
| Process Connection: | Screw Thread、flange（selectable） | Signal Output: | 4...20mA/HART/RS485/Modbus... |
| High Light: | Anti Corrosion Ultrasonic Level Gauge,Screw Thread Ultrasonic Level Gauge,20m Liquid Ultrasonic Level Transducer |
||

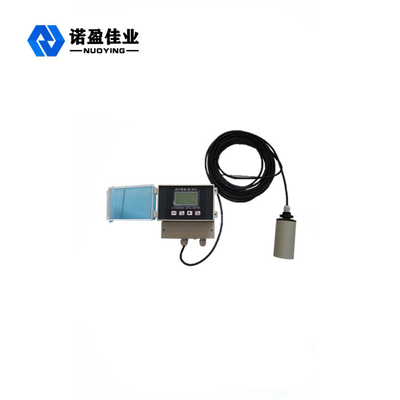

High Reliability Ultrasonic Level Gauge Wide Applicability
Working Principle of Ultrasonic Level Gauge
Ultrasonic level gauge installed on top of container, probe to launch a bunch of ultrasonic pulse object to be tested, Under the control of the electronic unit,sound waves are body surface reflection, part of the echo received by the probe into electrical signals, according to the ultrasonic time difference from the launch to be receiving and known to determine the level of sound, Microwave signals are processed by electronic devices and finally converted into electrical signals related to the object level.
Design feature of Ultrasonic Level Gauge
◎ upper and lower limit setting and alarm setting at any point, can be used for continuous liquid measurement and liquid level control
◎ reasonable design, excellent performance, simple structure, convenient installation, etc
◎ small angle probe is adopted for ultrasonic wave, with large transmission power and high sensitivity
Technical parameters of Ultrasonic Level Gauge
| Typical application | Liquid (no stirring, foam, volatilization, etc.) |
| Product models | Nycsul-501, NYCSUL-502, NYCSUL-503 |
| The probe type | Body, split body, explosion-proof, anti-corrosion, anti-corrosion and explosion-proof |
| The antenna material | PP, PVC, PTFE, 304 |
| Measuring range | 0~ 20M (integrated), 0~40m(separate), |
| Accuracy of measurement | <0.25% (range <20 m), <0.5% (range >20 m) |
| The process temperature | 3M, 20M (deep well can measure several hundred meters, which can be customized as well) |
| Accuracy of measurement | 0.05% ~ 0.1% F. S |
| The process temperature | -20~+70C |
| Process pressure | -0.1 ~=0.1 MPa, (atmospheric pressure) |
| Electrical Interface | M20×1.5,½"NPT |
| Protection class | IP65, IP67, IP68(optional) |
| Process connection | Process connection |
| Display mode | Liquid level, distance (air height) |
| Set the output | Upper limit setting, lower limit setting |
| Signal output | 4... 20mA/ HART/ RS485/Modbus. . . |
| Protection grade | IP65, IP67, IP68(Optional) |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb(see certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
