| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | ExdⅡCT6/ExmbⅡCT6 |
| Model Number: | NYUHZ |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/ pre month |
| Typical Application: | Liquid Level Measurement | Product Model: | NYUHZ |
|---|---|---|---|
| Installation Form: | Side Mounted,top Mounted | Main Material: | 304、316 |
| Measuring Range: | 0~6m | Measuring Accuracy: | ±3mm、±5mm、±10mm、±20mm(optional) |
| Medium Density: | ≥0.425g/cm³ | Density Difference: | ≥0.1g/cm³ |
| High Light: | Water Magnetic Float Level Gauge,NYUHZ Magnetic Level Meter,Side Mounted Magnetic Float Level Gauge |
||
Manufactory Water level sensor Magnetic Float level gauge
Description Water level sensor Magnetic Float level gauge
Introducing and absorbing domestic and foreign products, and to digest, absorb, improve the original magnetic level gauge standards promulgated by the Ministry of Chemical Industry HG/T21584 -95 developed products. Can be used in a variety of media level measurement towers, tanks, tank, spherical vessels and boilers and other equipment. The magnetic level gauge series can achieve high sealed, leak-proof and adaptation level measurement under high pressure, high temperature, corrosive conditions.The entire process of measuring non-blind, eye-catching display, intuitive readings. In particular site instruction part, because no direct contact with the liquid medium, so the high temperature, high pressure, high viscosity, toxic, harmful, corrosive media, can show its superiority. Therefore, it is more thanthe traditional glass, plate level gauge with higher reliability, security, advanced,practical.
The gauge of the most notable feature is the liquid medium and the indicator completely isolated, so in any case are very safe, durable, and various types of level gauge coupled with level alarm, control switches, or community level can be achieved the bit, the lower offside alarm control or interlock; coupled with reed chipset level transmitter can be level, sector-bit signal into a standard
two-wire 4-20mADC signal transmitted to a computer, regulator, liquid digit display device, to achieve long-range indication, detection, recording and control, the series level gauge widely used: the level of the production process in petroleum, chemical, metallurgy, pharmaceutical, food, electricity and other measurement and control.

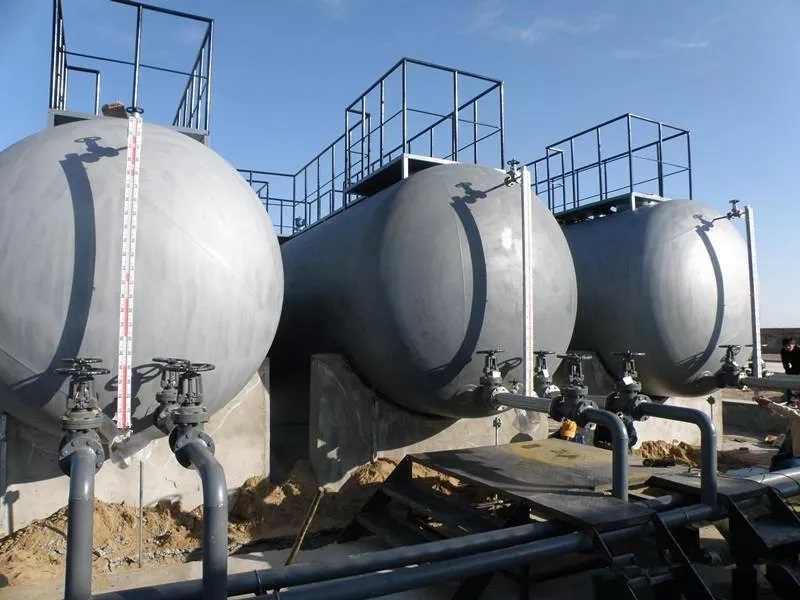

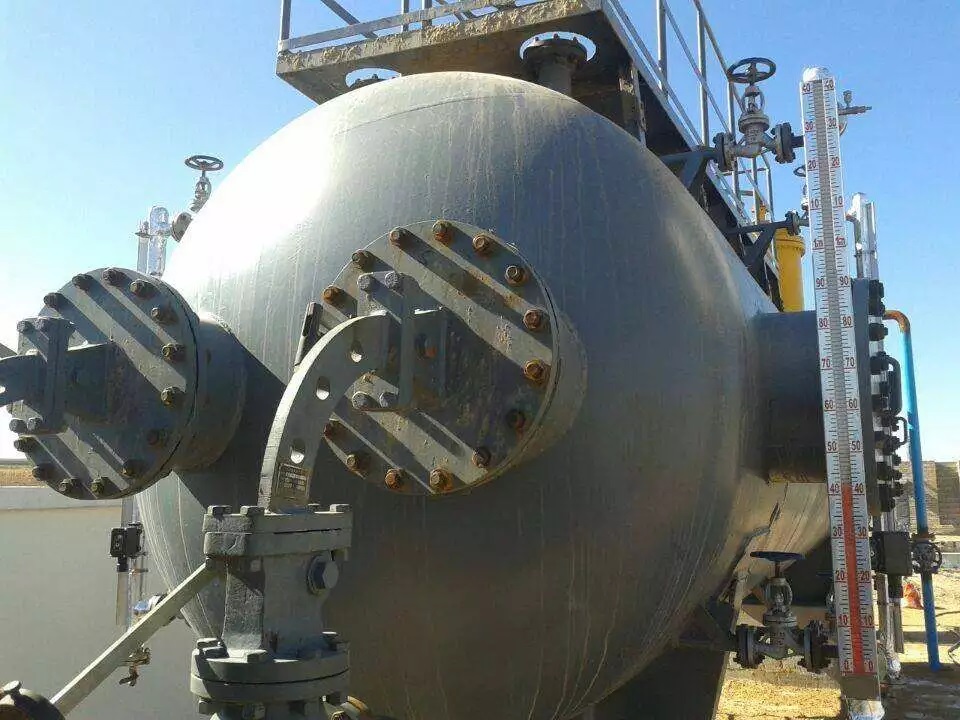

Detailed Images Water level sensor Magnetic Float level gauge
Specification Water level sensor Magnetic Float level gauge
Technical parameter
| Typical application | Liquid level measurement |
| Product model | NYUHZ |
| Installation form | Side mounted,top mounted |
| Main material | 304,316 |
| Measuring range | 0~6m |
| Measuring accuracy | ±3mm,±5mm,±10mm,±20mm(optional) |
| Medium density | ≥0.425g/cm³ |
| Density difference | ≥0.1g/cm³ |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC,1A |
| Transmit output | 4...20mA(power supply 24VDC) |
| Process temperature | -50~+350℃ |
| Process pressure | -0.1~+16MPa |
| Process connection | Flange(optional) |
| Resolution | 士I mm |
| Protection class | IP65,IP67,IP68(optional) |
| Explosion-proof grade | ExiaⅡCT6Ga,ExdⅡ CT6Gb(see the certificate) |
Features Water level sensor Magnetic Float level gauge
It total, compared with ordinary glass tube and glass plate surface, with the following characteristics:
(1) Level gauge the main components (body) in direct contact with the medium are made of stainless steel material or other special materials, indicating that components are not in contact with the media, and therefore containing flammable, explosive, toxic, corrosive media container use the gauge is safe and reliable.
(2)Two-color (white vapor, liquid red) turned columns, flap display, indicating continuous visual eye-catching, no blind spots, in any case will not be a false level.
(3)Less sealing surface, reducing static seal leakage points above 95%, and thus, to overcome the petroleum, chemical industry pressure vessel parts run,run, drip, leak and other weak links than the original plate level gauge.
(4)Simple structure, easy installation and maintenance, large-scale, design pressure, long life, wide range of applications.
(5)Magnetic float level gauge, with a level gauge can replace more than one glass plate liquid level gauge, and the installation extremely easy to use. Meanwhile, the use of plant development level remote transmitter, alarm and automatic control device, can be realized on the lower level alarm and control automation.

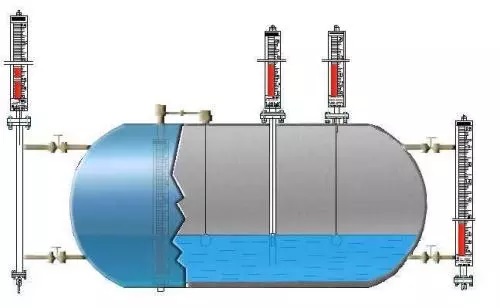

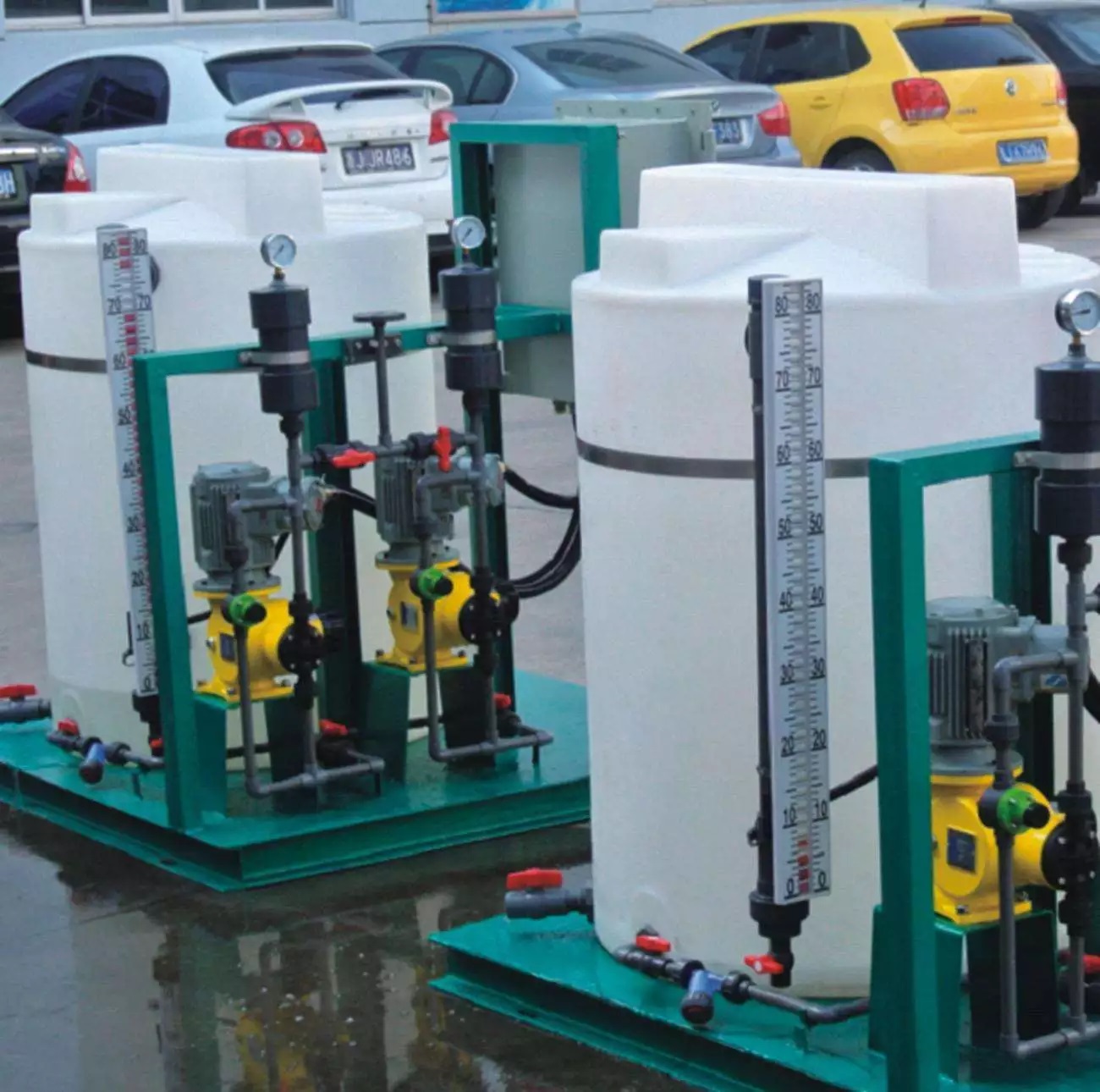

Applications Water level sensor Magnetic Float level gauge
Selection Guide Water level sensor Magnetic Float level gauge
When ordering, please provide the following parameters:
Measuring length
Connection flange standards
Media name and density
Medium temperature
Medium pressure
Installation
Material selection
