| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NYRD808 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $450~$1700/pc |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/month |
| Typical Application: | Occasions With Solid Materials, Strong Dust, Easy Crystallization And Condensation | Product Model: | NYRD808 |
|---|---|---|---|
| Antenna Form: | Bar Type, Water Drop Type, Plate Type, Horn Type, Surface Type, Lens Type | Meaturing Range: | 70m |
| Antenna Material: | PTFE、304、 316、 PP、 PFA | Measurement Accuracy: | 0.05%~0. 1%F.S |
| Power Supplies: | 24VDC(two-wire, Four-wire), 220VAC | Protection Grade /IP Grade: | IP67(Optional) |
| High Light: | PTFE Bar Type Radar Level Instrument,Piston Balance Test Radar Level Transmitter,26G Guided Radar Level Sensor |
||
Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment
The profile of Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment
Radar Level Meter (NYRD808)series sensors are 26GHz high-frequency radar level measuring instruments, measuring the maximum distance up to 80 meters. The antenna is further optimized, and new fast microprocessors can perform higher rate signal analysis and processing, enabling the meter to be used in complex measurement conditions such as reaction tanks and solid bin
Working Principle of Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment

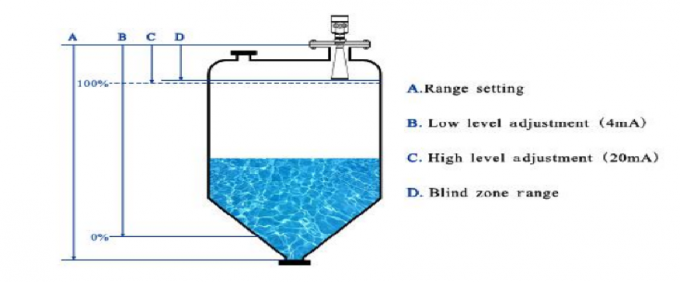

Datum of measurement: sealing surface of thread bottom or flange.
Note: When using radar level timing, make sure that the highest material level cannot enter the measurement blind area (the area shown in D in the figure).
Design Features of Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment
◎The antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
◎ almost immune to corrosion and foam; Not affected by medium density, temperature and pressure changes.
◎ Serious dust environment has little influence on the work of high frequency level meter.
◎ Shorter wavelength, better reflection on inclined solid surfaces.
◎ The beam Angle is small, the energy is concentrated, which enhances the echo ability and is conducive to avoid interference objects.
◎ Measuring blind area is smaller, for small tank measurement will also achieve good results.
◎ High signal-to-noise ratio, even in the case of fluctuations can also obtain better performance.
case of fluctuations can also obtain better performance.
◎ High frequency, is the best choice for measuring solid and low dielectric constant medium.High frequency, is the best choice for measuring solid and low dielectric constant medium.
Technical Parameters of Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment
| Typical application | Occasions with solid materials, strong dust, easy crystallization and condensation |
|
product model |
NYRD808 |
|
Antenna form
|
Stick, water drop, flat, trumpet,thrown surface, lens
|
| Antenna material | PTFE,304,316,PP,PFA |
| measuring range | 70m |
| accuracy of measurement | 0.05%~0.1%F.S |
| Power Supply Voltage | 24VDC(two wire,four wire),220VAC |
|
signal output |
4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+250℃ |
| Process pressure |
-0.1~4.0MPa, |
| procedure linkage | flange(optional) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP67(optional) |
| explosion-proof classification | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
