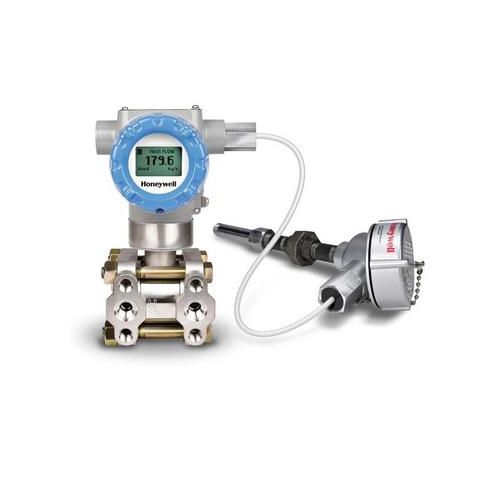

The SMV800 transmitter combines differential pressure, static pressure and temperature sensor technology with microprocessor technology to measure variables, compensated flow and accumulated flow with high precision through multiple communication protocols. When used with the unique features of SmartLine® , SMV800 can greatly improve safety, reliability and efficiency, helping users reduce project costs and shorten start-up time, while increasing productivity. The SmartLine ® series has been fully tested and complies with the requirements of Experion ® PKS, with good compatibility and integration capabilities.
• Differential pressure measurement accuracy up to 0.0400%
• Static pressure measurement accuracy as high as 0.0375%
• Temperature measurement accuracy up to 0.1℃
• Mass flow reference accuracy up to 0.6%
• Automatic static pressure and temperature compensation
• Turndown ratio up to 400:1
• Compensated flow response time up to 500ms
• Various display functions available
• External zero, span and configuration functions
• Power supply polarity can be connected in any way
• Complete self-diagnosis function
• Based on ANSI/NFPA 70_202 and ANSI/ISA 12.27.0 integrated double seal design to ensure safety
• Industry-leading overvoltage protection capability
• Modular design
