| Place of Origin: | Xi'an,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE |
| Model Number: | NT-93420-Pt100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $45.0~$95.0 |
| Packaging Details: | 40*30*30cm Carton |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs/pre month |
| Material: | SS 304 | Output: | 4-20mA、RS485 |
|---|---|---|---|
| Supply Power: | 9-36VDC | Accuracy: | 0.2%FS |
| Ambient Temperature: | -20~+85℃ | Protection: | IP65 |
| Connection: | Thread | Warranty: | One Year |
| Temperature Range: | -40~+500℃ | ||
| High Light: | SS304 PT100 Water Temperature Sensor,PT100 Water Temperature Sensor RS485,Agricultural PT100 Temperature Sensor |
||

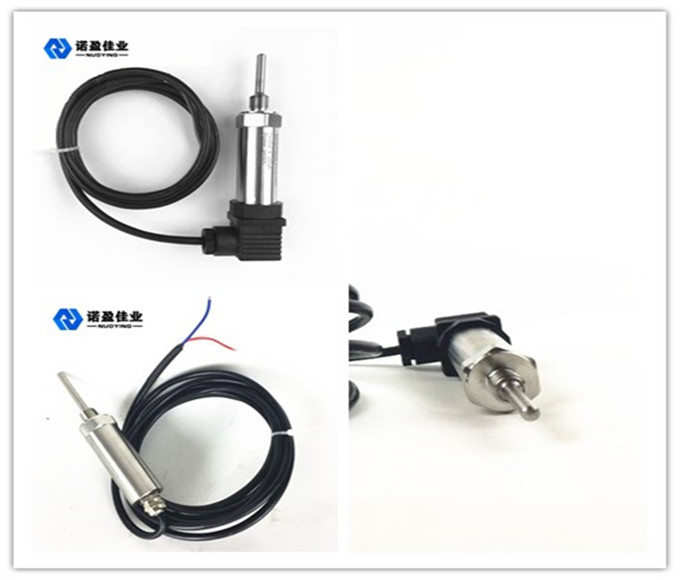

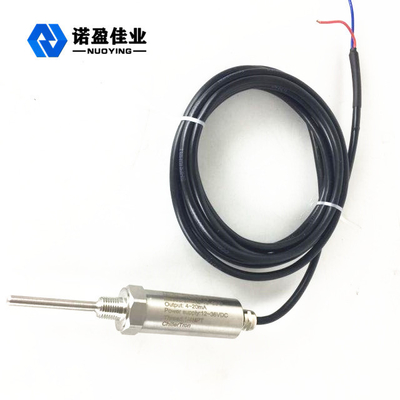

PT100 Water Temperature Sensor For Agricultural
PT100 Water Temperature Sensor For Agricultural Description:
PT100 water temperature sensor for agricultural is generated by the sensor resistance effect at temperature, to produce a differential voltage signal converted by the dedicated processing unit, this signal via a dedicated amplifier, the range corresponding to the signal into a standard analog or digital signals.
PT100 Water Temperature Sensor For Agricultural Features:
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection
PT100 Water Temperature Sensor For Agricultural Application:
Suitable for indoor plumbing or cavities within the body temperature measurement, non-hazardous general scene.
PT100 Water Temperature Sensor For Agricultural Technical Parameter:
| Measuring media | Liquid |
| Measuring range | -50-300 ℃ |
| Power supply | 9 ~ 36VDC |
| Output signal | 4 ~ 20mA, RS485 |
| Probe material | Stainless steel 304 |
| Accuracy class | ± 0.5 ℃ |
| Ambient temperature | -40 ~ 85 ℃ |
| Stability | ± 0.1% FS / Year |
| Protection | IP65 |
| Pressure Level | 10MPa (above can be customized) |
| Maximum power | Current type ≤0.02Us (W) Voltage-≤0.008Us (W) Mumeric ≤0.015Us (W) Note: Us = supply voltage |
| Load characteristics | Current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω Voltage type load ≥100kΩ |
