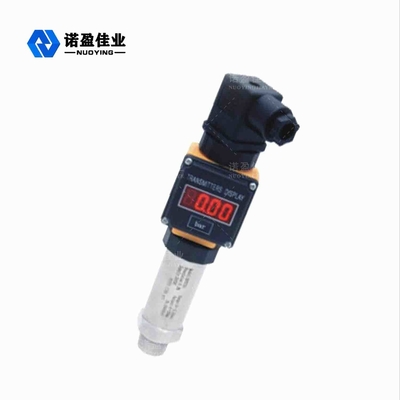

SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
${data.index + 1}/4
Description
Product Details:
Payment & Shipping Terms:
| Place of Origin: | Xi'an, Shaanxi，China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb |
| Model Number: | NP-93420-IB |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $450 to $1700 /pcs |
| Packaging Details: | Carton, 60cm×30cm×30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/ pre month |
| Application: | Liquid/Gas/Steam | Product No.: | NP-93420-IB/-IF/-IX/-IC/-IT/-IQ/-II/-III |
|---|---|---|---|
| Gauge Pressure: | 0~5KPa~3.5MPa/0~0.1KPa~2MPa | Sealing Pressure: | 0~7KPa~100MPa |
| Absolute Pressure: | 0~20KPa~35MPa | Diaphragm Material: | 316L(Optional) |
| Accuracy: | 0.1/ 0.2 Grade | Power Supply: | 24VDC |
| Output: | 4... 20mA/HART/RS485/Modbus... | Display: | LCD(Optional) |
| High Light: | 24VDC Water Digital Pressure Sensor,Stainless Steel Digital Pressure Sensor Transmitter,SS316L Liquid Pressure Transmitter |
||
china suppliers low cost digital pressure sensor for water
Product Description
Description of china suppliers low cost digital pressure sensor for water
china suppliers low cost digital pressure sensor for water uses piezoresistive silicon oil-filled sensor as the signal measuring element. LED pressure transmitter signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. china suppliers low cost digital pressure sensor for water and led pressure transmitter through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance.
Detailed Images
Specification
|
Item
|
china suppliers low cost digital pressure sensor for water
|
|
Measurement Range
|
-0.1．．．0~0.01．．．~100MPa
|
|
Proof pressure
|
≤1.5X rated pressure or 110MPa which ever is less
|
|
Pressure type
|
Gauge, absolute ,sealed gauge
|
|
Accuracy
|
±0.25%(Typical) ±0.5%(Max.)
|
|
Stability
|
±0.1%F.S/Year( Typical ) ±0.2%F.S/year( Max.)
|
|
Temperature Error- Zero
|
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa)
|
|
Temperature Error -Span
|
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa)
|
|
OperatingTemperatureRange
|
-20℃~80℃
|
|
Power supply
|
12～30VDC
|
|
Output signal
|
4～20mA 0～10/20mA 0/1～5VDC
|
|
Pressure port
|
M20×1.5 G1/2 or customize
|
|
Housing material
|
