| Place of Origin: | China |
|---|---|
| Brand Name: | Nuoying JIAYE |
| Certification: | Explosion proof certificate |
| Model Number: | NYCSUL-501 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 1USD - 900USD |
| Packaging Details: | 30cm×25cm×20cm |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | Unlimited supply |
| Typical Application: | Liquid Level Measurement | ProbeMaterial: | PP/PVC/PTFE/304(optional） |
|---|---|---|---|
| Accuracy: | ＜0.25% | Measuringangle: | 10° |
| Power Supply: | 24VDC、220VAC | Process Pressure: | Normal Pressure |
| Signal Output: | 4...20mA/HART/RS485... | Display: | LCD |
| High Light: | Ultrasonic digital level Transmitter,Digital Level Transmitter 20m,20m sonic level sensor |
||

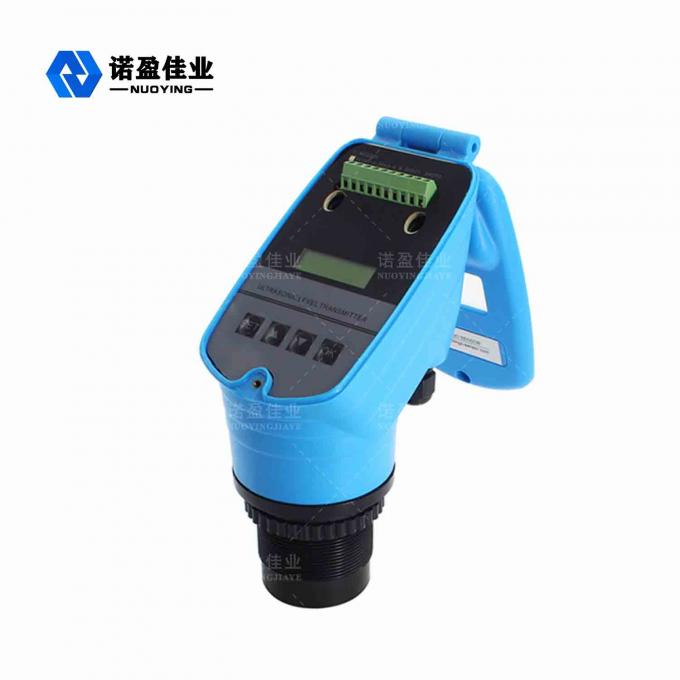

Digital Ultrasonic Liquid Fuel Level Meter Transmitter Level Sensor
Ultrasonic Level Transmitter
The Ultrasonic Level Measurement is mounted on top of the vessel. Under the control of the electronic unit, the probe emits ultrasonic wave pulse to measured medium. The sound wave is reflected by the surface of medium, a part of reflection echo is received by the probe and converted into electrical signal. From the emission of the ultrasonic wave to the new reception,the time is direct proportion to the distance from the probe to the measured medium. The electronic unit detects the time and calculates out the easured distance according to the known sound velocity. Use subtraction to obtain the value of medium position. It is widely used in open pipe, oil tank, pump station, water tower, dam,open channel, difference between levels etc.
Ultrasonic Level Transmitter Technical Parameters
|
Product Name |
Ultrasonic Level Sensor |
|
Measuring Range |
20~30m(liquid); 10~15m(solid) |
|
Blind Area |
0.6~0.8m |
|
Precision |
0.2% of the full measuring range(in the air) |
|
Display Resolution |
1cm |
|
Current Output |
4~20mA |
|
Output Resolution |
0.03% of full measuring range |
|
Output Load |
0~600Ω |
|
Relay Output |
toplimit and lower limit control |
|
Relay Specification |
5A 250VAC/30VDC |
|
Parameter Set |
3 sensing buttons |
|
Medium Temp |
-45°C~ 95°C |
|
Detecting Period |
1 S |
|
Installation |
flange or support |
|
Acousticwave Beam Angle |
8°(3db) |
|
Pressure Range |
±0.3MP |
Note: customized on demand
Ultrasonic Level Transmitter Design Features
- Reasonable design, excellent performance, low unit price, simple structure and high installation convenience;
- Ultrasonic uses a small-angle probe with high transmit power and high sensitivity； ◎ Arbitrary point upper and lower limit setting, alarm setting, can be used for continuous liquid measurement and liquid level control.
