| Place of Origin: | Xi'an,Shannxi,China |
|---|---|
| Brand Name: | NUOYINGJIAYE |
| Certification: | CE,ATEX,SIL |
| Model Number: | NYRD-SD |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $920~$1250/pcs |
| Packaging Details: | Carton, 60cm x 30cm x 30cm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |
| Antenna Material: | Water Drop Antenna, PTFE(optional) | Measuring Range: | 80m |
|---|---|---|---|
| Power Supply: | 220VAC(Two Lines, Four Lines) | Medium Temperature: | -40℃~+130℃ |
| Process Pressure: | -0.1~2.0MPa | Protection Level: | IP67 |
| Explosion-proof Grade: | Exia II CT6 Ga | Signal Output: | 4...20mA/HART(optional) |
| High Light: | Water Drop Radar Liquid Level Transmitter,PTFE Non Contact Radar Level Gauge,2.0MPa Radar Tank Level Sensor |
||

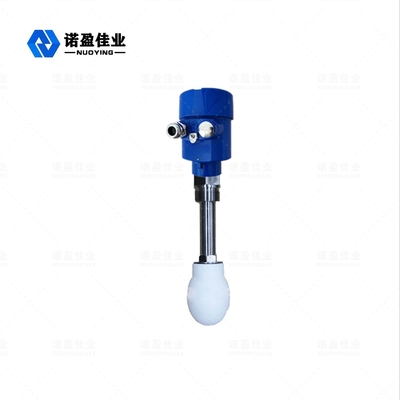

Water Drop Type NYRDSD Liquid Radar Level Transmitter 2.0MPa PTFE Non-Contact
Water Drop Type NYRDSD Liquid Radar Level Transmitter Working Principle
NYRD80X Radar level meter series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measuring distance of 80m. The antenna is further optimized, and the new fast microprocessor can carry out higher rate signal analysis and processing, making the instrument can be used in reaction kettle, solid bin and some complex measurement conditions. The signal is transmitted to the electronic circuit part and automatically converted into object level signal.
Water Drop Type NYRDSD Liquid Radar Level Transmitter Technical Parameters
| Typical application | Easy crystallization, condensation, strong corrosive liquid, powder |
| Antenna material | Water drop antenna, PTFE(optional) |
| Measuring range | 80m |
| Measuring accuracy | 0.05%-0.1%F.S |
| Power supply | 24VDC(Two lines, four lines) |
| Medium temperature | -40℃~+130℃ |
| Process connection | flange,thread(optional) |
| Process pressure | -0.1~2.0MPa |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 Ga |
| Signal output | 4...20mA/HART(optional) |
Water Drop Type NYRDSD Liquid Radar Level Transmitter Design Feature
1.Antenna size is very small, installation is very easy; Non-contact radar, no wear and no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.
3.High signal-to-noise ratio for better performance even under fluctuating conditions.
4.Shorter wavelength, better reflection for inclined solid surfaces.
5.Small beam angle and concentrated energy.
6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.
